XDP Large-Format Inspection Panels From ExiscanTM

Infrared, Visual & Ultrasound Inspection


green line







Exiscan XDP Window

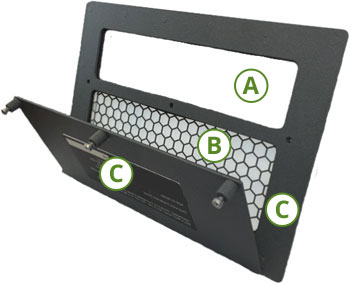

XDP Window Anatomy

[A]

XDP Window AnatomyVisual Inspection Window

  • Viewing window provides broad field of view inside the enclosure, even across phase dividers.
  • Impact-resistant polycarbonate: the durability and resilience you expect from ExiscanTM.
  • Scratch-Off™ protection inside & out: peel scratches and hazing off the viewing window for a clear, accurate view with Exiscan’sTM patent pending, multi-layer tear-away system.
  • UV stabilized, oil resistant.



[B]

Infrared (IR) Window

  • IR window optic provides a vast field of view without cropping issues.
  • Impact-resistant optic for unsurpassed durability.
  • Finger guard allows user to place camera lens next to window optic to maximize field of view.
  • Polymer optic is inherently resistant to moisture, humidity, and a broad spectrum of acids and alkalis for longevity and stable transmission.
  • Transmission throughout the entire long wave and mid wave spectra for accurate temperate and ΔT calculations.



[C]

Window Body & Cover

  • 12 gauge stainless steel base, and 14 gauge stainless steel hinged cover for unmatched durability and integrity.
  • Window frames machined from bar stock aluminum — Mil-Spec anodized.
  • Stainless steel, spring loaded, captive cover screws for a safe, secure seal.
  • Entire assembly powder coated to endure aggressive environments.
  • Cover available in full or partial (IR only).



  Other Structural Features:
  • Stainless steel reinforcing plate (inside the enclosure) ensures a tight, flat seal in the event of blast forces.
  • Stainless steel studs with Nyloc nuts ground and anchor the window into virtually any enclosure.
  • Gaskets between the cover and body, and between the body and enclosure provide a NEMA 4X seal for indoor and outdoor use.
